Kiwi Prop Installation and Maintenance

You are now the proud owner of an original Kiwi Feather Prop™ which has been carefully designed and engineered to deliver many years of carefree service on your vessel. There are some very simple recommendations you should be aware of to ensure your Kiwi Feather Prop™ will continue to deliver trouble free performance in the years ahead.

INSTALLATION:


Before fitting your new Kiwi Feather Prop™ first check that the shaft is free to rotate and can be spun easily by hand to ensure correct feathering.
Remove the nut from the Boss by releasing the locking screws. Wipe all mating surfaces clean and lightly smear with a marine grease including both keyways.
Check that the taper length will allow the nut to pull the propeller tight on to the shaft. In all cases the boss should protrude ~1/4 inch longer than the small end of the taper, which is the SAE standard, to ensure the nut pulls up on the boss correctly and doesn't bind on the thread.
To ensure the key is fitted correctly, mount the unit without the key, to ensure the taper is tight, and then again with the key to ensure it is not binding on the keyway which can then be ground down if required. [Larger 1.125" and 1.250" units mount 0.250" and 0.625" respectively down from the start of the taper ] Check the fitting of the nut prior to mounting the propeller and remove any burrs or impediments to the smooth operation of the nut. Smear the thread with a marine grease.
A new key will be supplied for all 1 1/4 inch shafts with one face ground down by 0.025" which allows for a common boss size. Ensure the ground face is mounted outwards. Always replace any key that is old or shows any signs of corrosion. Keys are usually only a brass and will corrode rapidly. The shearing of a corroded key will result in the automatic loss of your new propeller.
Saildrives require a similar approach. Ensure that both internal and external splines are scrupulously clean to avoid binding and that the ~10 mm thick collar with shield which acts as a seal guard is on the shaft. Check the Delrin nose cone is not binding on the zinc. Some units such as Lombardini come with washers which must be mounted. All Saildrives require that the distance from the end of the spline to the face taking the thrust is exactly 3.000". All Saildrive propellers then have bosses which are ~ 3.125" long to ensure they pull up tight on the thrust face before the M16 (M20 for SD40) nut starts to bind at the end of the thread.

The photograph below shows a boss without the blades attached and clearly identifies the nut with it’s ˝” square drive and the two locking screws that must first be backed off to allow for removal of the nut from the unit.

These same locking screws must then be coated in Loctite™ before being wound back into the boss and tightened down to ensure the nut retaining the propeller is correctly locked in.

NB: A FAILURE TO TIGHTEN THESE TWO LOCKING SCREWS AND SECURE WITH LOCTITE™ WILL INVARIBLY LEAD TO THE LOSS OF THE ENTIRE PROPELLER UNIT.

nut locking screws

Do not over tighten the nut which attaches to any standard 1/2 inch socket driver. This is particularly important on tapered shafts when you need to remove the propeller and when using the Delrin nut option. Just nip it up using no more than 10 foot lbs of torque. This is equivalent to the weight of a one gallon or five litre can of water suspended on your socket driver one foot or 300 mm from the nut.

Apply a drop of Loctite ™ to the 2 x 8mm grub or set screws located on the hub of your KiwiProp which are used to then lock the nut onto the shaft using the appropriate Allen key

Again .. do not over tighten, particularly when using the Delrin nut
NB: Saildrive nuts and their locking screw should be checked and re-tightened at each haulout as Splines by their nature may fret slightly in use and could loosen the locking screws.
To ensure the propeller feathers correctly, first throttle down to an idle, and then place the gearbox in neutral before stopping the engine. The shaft will then slow down as the blades align themselves with the water flow and quickly come to a stop. The shaft will then remain stationary without further attention.
Keep the gearbox in neutral whenever you are sailing.
You are now ready to enjoy the ongoing benefits from your Kiwi Feather Prop™
Top

maintenance and pitch adjustment recommendations.

PITCH SETTINGS:

The Kiwi Feather Prop™ will have been set at the recommended pitch for your installation based on the engine model number, the reduction gear fitted and the particular characteristics you supplied of your vessel. You may however wish to take advantage of the simple pitch adjustment feature to accommodate the many variations between individual vessels and operating preferences and obtain the optimal motoring performance for your particular requirements. One turn of the 8 mm pitch screw in a clockwise direction to each blade in turn will equate to 3 degrees of pitch [not inches of pitch] and substantially increase the power required from the engine and drive train. This will translate to lower engine revs. We would recommend adjustments be made in no more than exact half turn increments to each blade, which has the effect of varying engine revs by some 300 ~ 400 rpm. Each installation is unique and only experience can deliver the apropriate settings and optimal cruising revs for your vessel. A pitch setting of 20 degrees equates to a normal pitch of ~ 11 to 12 inches. [ The required Allen key is 5/32" or 4 mm ]Kiwiprop pitch adjustment

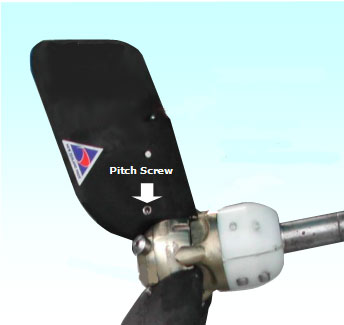

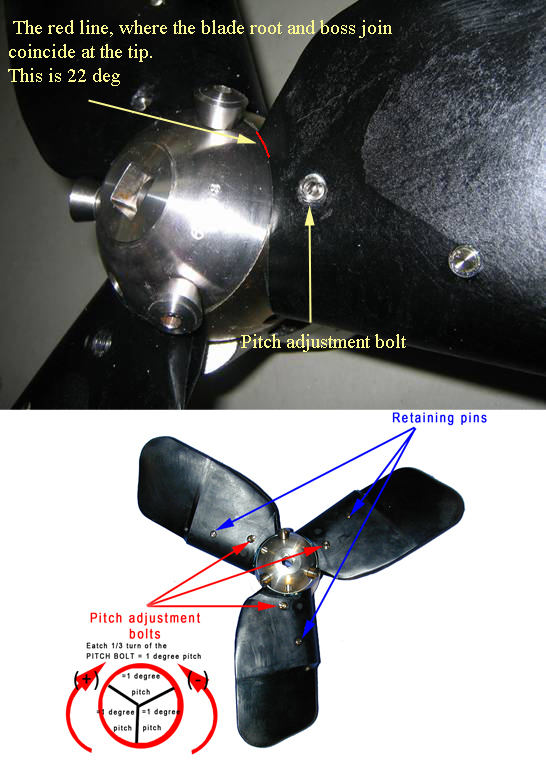

To maintain an equal pitch on each blade, were this to be lost, or required if a blade was replaced, use the following procedure. When the aft face of the blade root is aligned with the joint line between the mushroom end holding the reversing rollers which rotates, and the boss which carries the blades, then the pitch is equates to 20 degrees on older blades.
For units with a serial # > 446 and new blade dies this equates to an 18 deg null.
Simply adding or subtracting one degree of pitch can then be executed by the above procedure using 1/3 rd of a turn = 1 degree of pitch. For example 22 degrees of pitch would be 2/3 rd of a turn in or clockwise from the 18 or 20 degree null reference
The screws are self locking as Zytel is an Aramid and cut the last 5 threads into the blade. After pitch alteration place Loctite around the head of each pitch screw as extra insurance. NB: Ceelon Thread Seal around the screw can be used to ensure the screw is sufficiently stiff if it has been caught - perhaps on a rope and moved slightly and become freer.click here for: Kiwiprop pitch adjustment refference point
IMPORTANT:
To avoid damaging the blade roots in reverse by exceeding the designed pitch settings when increasing the pitch, first lock the propeller by engaging ahead with the engine stopped. Rotate the propeller by hand into the reverse position against the spring, and then only increase the pitch until the blade comes up against the reversing rollers. You will not be able to exceed ~ 23.5 degrees of pitch on most units. This represents the maximum pitch setting available from your Kiwi Feather Prop™

Top

LUBRICATION:

Punch pin out

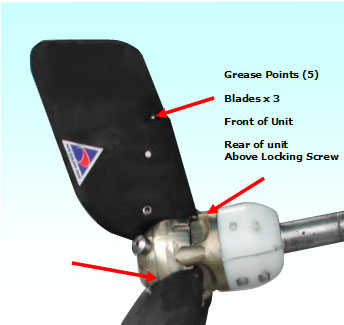

The Kiwi Feather Prop™ contains lubricants sufficient until your next maintenance haulout. Each blade must then be greased via a lubrication point accessed by removing the small Pozidrive stainless screw on the blade face. In addition there are two small grease holes, one very close to the Delrin ™ nose cone in the bronze casting that takes the thrust of the pitch screws and one near the outer perimeter of the bronze sphere at the rear of the unit. These have been chamfered to accept a standard needle nosed grease point. You will need to remove the outer guard off the needle. Each of these five grease points should then be filled with a high quality marine grease eg Shell ™ Nautilus Marine Grease - NLGI No 2.
